18-stations Tubular Heater Rolling Mill Machine
Products Introduction

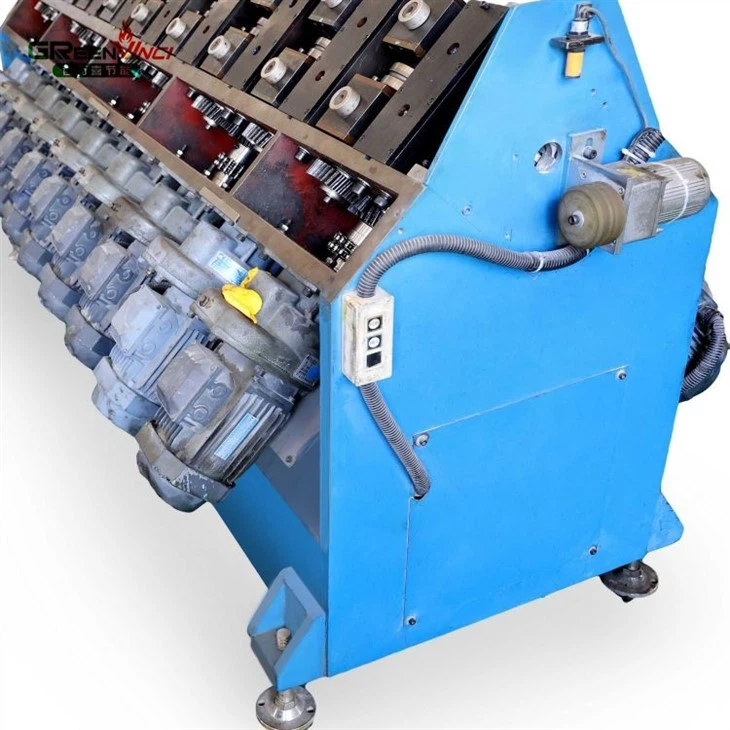

18-station Tubular Heater Rolling Mill Machine is utilized to reduce the diameter of electric heaters filled with MGO powder, increasing their density.
Products Specification:
|
Model |
Power Supply |
Size(rw*H)mm |
Weight(kg) |
|
GV001-12S |
Three Phase(380V/50Hz/6kW) |
1200X800X1200 |
1800kg |
|
GV001-16S |
Three Phase(380V/50Hz/9kW) |
1600X800X1200 |
2500kg |
|
GV001-18S |
Three Phase(380V/50Hz/12kW) |
2100X800X1200 |
2800kg |
Main Feature
1. The machine body features an integrated casting molding structure, ensuring minimal distortion, high precision, and long-lasting durability.
2. The speed rate of each pair of axis wheel will increase while the diameter of pipe reduced. The details have good linear character and smldistort after pipe shrink, and elongation length, saving materials.
3. Roller compression ratio adjustments maintain unchanged roller height center.
4. Achieves high geometric precision of compressed pipes, with ovality less than 0.05.
5. Equipped with motor overload protection, automatically stopping in case of blockage.
6. Pipe shrinking speed of 18m/min for high efficiency.
7. Offers the flexibility to operate at uniform or non-uniform speeds based on different diameters and orders.
8. Low noise, and easy adjustment for user convenience.
9. Suitable for various metal tube materials.
10. Available in three models with 12, 16, and 18 stations, customizable to meet customer requirements.
Products Description
1. The 18-stations Tubular Heater Rolling Mill Machine is made of high-quality materials, which ensures that it is robust, durable, and resistant to wear and tear.
2. The machine has an adjustable temperature control system that allows the operator to set the temperature according to the requirements of the shrinking process.
3. The machine has a safety feature that automatically shuts off the system if the temperature exceeds the set limit during the shrinking process.
4. The machine has a compact and portable design that makes it easy to move and store, and it requires minimal space in the factory.
5. The machine is equipped with a power supply protection system that protects the machine from power surges, which helps to extend its lifespan and reduce maintenance costs.
The 18-stations Tubular Heater Rolling Mill Machine is equipped with temperature control and timing functions to ensure that the equipment operates efficiently and safely. The temperature controller accurately controls the heating temperature, and the timing function ensures that the heating time is controllable, while also preventing damage due to overheating.

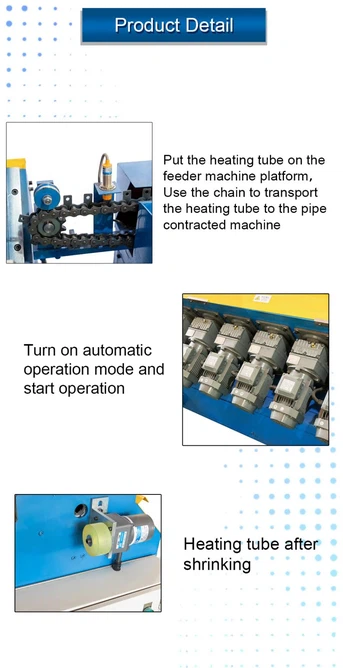

Tube rolling machine can be used together with GV-014 Feeding machine and can be equipped with tube marking device.
