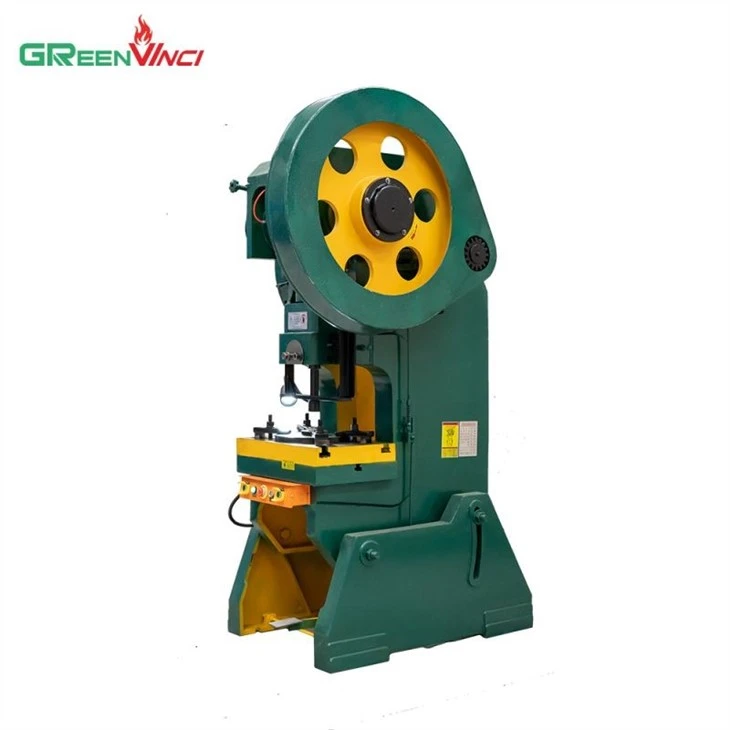

Power Press Punching Machine
Product Introduction
The punching machine is to remove the excess water outlet part in the middle of the heating plate, the precision and safety of the high-speed movement and stop of the punching machine slider, high sensitivity, greatly improve the work efficiency and capacity, and can be fully automated.
Product Parameter
|
Power supply |
3-phase 4 wires 380+N 50HZ |
|
Power |
customized |
|
Efficiency |
9600-14500times∕8h |
|
Size |
customized |
|
Machine Weight |
customized |
Application
Punching and forming products can be used, but it still depends on the specific mold
Main technical parameters of the Power Press Punching Machine:
|
No. |
Item |
Unit |
Digit |
|
|
1 |
Nominal pressure |
KN |
400 |
|
|
2 |
Slider travel |
MM |
100 |
|
|
3 |
The number of slider strokes |
times/sec. |
45 |
|
|
4 |
Maximum closing height |
MM |
240 |
|
|
5 |
Closing height adjustment amount |
MM |
50 |
|
|
6 |
Worktable size |
MM |
640×410×65 |
|
|
7 |
The distance from the center of the slider to the fuselage |
MM |
230 |
|
|
8 |
Table blanking hole size |
MM |
Ф160 |
|
|
9 |
Die shank hole sizeФ×D) |
MM |
Ф50×60 |
|
|
10 |
Dimension |
L |
MM |
1550 |
|
W |
MM |
1050 |
||
|
H |
MM |
2300 |
||
|
13 |
motor power |
KW |
3 |
|
|
14 |
Weight(about) |
KG |
||
The Power Press Punching Machine is an open double column fixed table form press, it is driven by the crankshaft connecting rod to drive the slider to move, the crankshaft and the connecting rod mechanism are steel, so the movement of the slider is mandatory, the number of trips and the movement curve of the slider are fixed.
The machine is widely used, such as cutting, punching, blanking, molding, bending and shallow stretching can be used. But not suitable for stamping and hot die work. And the throat depth of the machine is increased, increasing the range of the user, and equipped with a single and continuous travel device.
Before using the Power Press Punching Machine, the working pressure can be selected according to the machining piece and the pressure curve diagram. When selecting, it must be within the strength range of the pressure curve table.
