Foshan Davinci Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of multi-spindles vertical drilling machine in China, also supports customized service. Please feel free to wholesale cheap multi-spindles vertical drilling machine in stock here from our factory. For price consultation, contact us.
Multi-spindles Vertical Drilling Machine
Product Overview
Multi-spindle Vertical Drilling Machine is to precisely drill holes on the plate. It can complete the processing of multiple hole positions at the same time.
Working principle of Multi-spindle drilling machine
1. Simultaneous Multi-hole Drilling: Boosts productivity by drilling multiple holes at once, reducing processing time.
2. Versatile Angles and Depths: Capable of drilling holes at various angles and depths for complex workpieces.
3. Adjustable Drilling Speed: Allows customization of drilling speed and feed rate for optimal performance and tool longevity.
Product Advantages
1. High Efficiency: Multiple spindles ensure rapid processing, enhancing overall output.
2. Precision and Accuracy: Ensures uniform hole sizes and dimensions for consistent quality.
3. Versatility: Suitable for a wide range of workpieces with diverse drilling requirements.
4. Cost-effective: Offers excellent value, performing the tasks of multiple machines at a reduced cost.
Description of the names of important parts of the Multi-spindles Drilling Machine tool:
1. Power Indicator/light
2. Column
3. Belt cover
4. Electric control box (note: on the side)

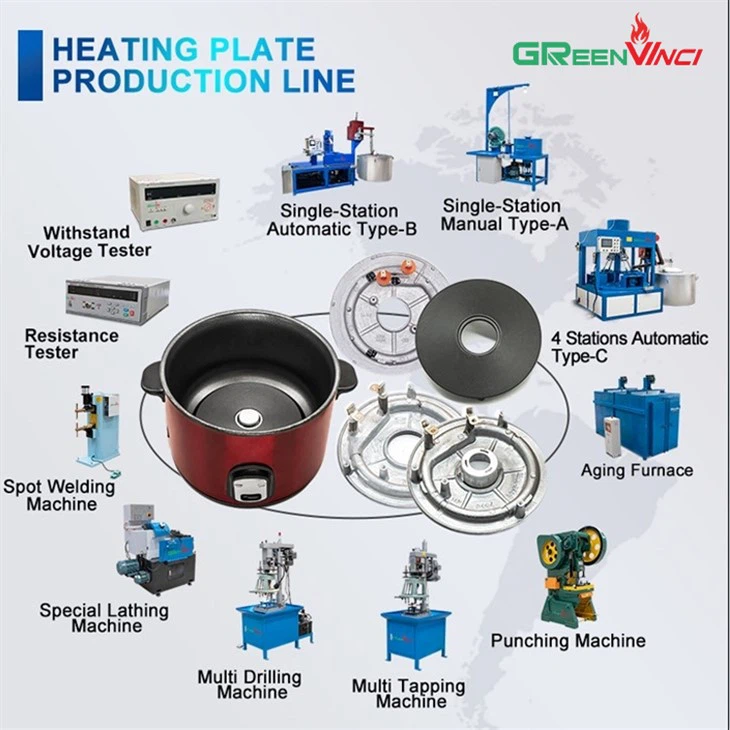

Rice Cooker Heating Plate Production Line
Q: Why to Choose Davinci Factory?
A: Davinci a manufacturer of heating element equipment, providing One Stop Solution for small appliance manufacturers.
We can provide customers with production equipment and consumables, as well as technical consultation
Q: Can I customized size?
A: Yes,Our Multi-spindle Vertical Drilling Machine can complete the processing of multiple hole positions at the same time, automatically feed the drill head, and the chuck of the drill bit can be replaced with different specifications, and the drilling position can be adjusted arbitrarily.
It can support household rice cooker heating plate and industrial rice cooker heating plate.
Do you Want to Open Factory in your Country?
Do you need Technical Supplier?
Davinci can help you !
Hot Tags: multi-spindles vertical drilling machine, China multi-spindles vertical drilling machine manufacturers, suppliers, Multi spindles Hole Drilling Machine, Multi axis Hydraulic CNC Drilling Machine, Multi axis Hydraulic Core Drilling Machine, Multi spindles Power Drill machine, Multi spindles Heavy Hole Drilling Machine, Multi spindles Vertical Power Drill machine
Product Parameter
|
Power supply |
380V 50Hz |
|
Power |
1.5KW |
|
Size |
600x900x1900mm |
|
Machine Weight |
310KG |
|
Capacity |
600pcs/hr |
|
Hydraulic pressure |
2.0-2.4Mpa |
|
Maximum stroke(mm) |
65 |
|
Workbench area (mm) |
300*350 |
|
Spindle speed (r/min) |
1400 |
|
Maximum drilling diameter wire diameter (mm) |
5mm |
|
Maximum drilling area (mm) |
Adjustable within Φ250 |
|
Minimum distance of shaft head (mm) |
15 |
|
Number of axes |
9 |
|
Repeatability (mm) |
0.02 |
|
Feeding method |
20 hydraulic station (adjustable) |
|
Water tank |
included |
|
Water pump |
included |
