Multi-spindles Hydraulic Drilling Machine

Foshan Davinci Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of multi-spindles hydraulic drilling machine in China, also supports customized service. Please feel free to wholesale cheap multi-spindles hydraulic drilling machine in stock here from our factory. For price consultation, contact us.

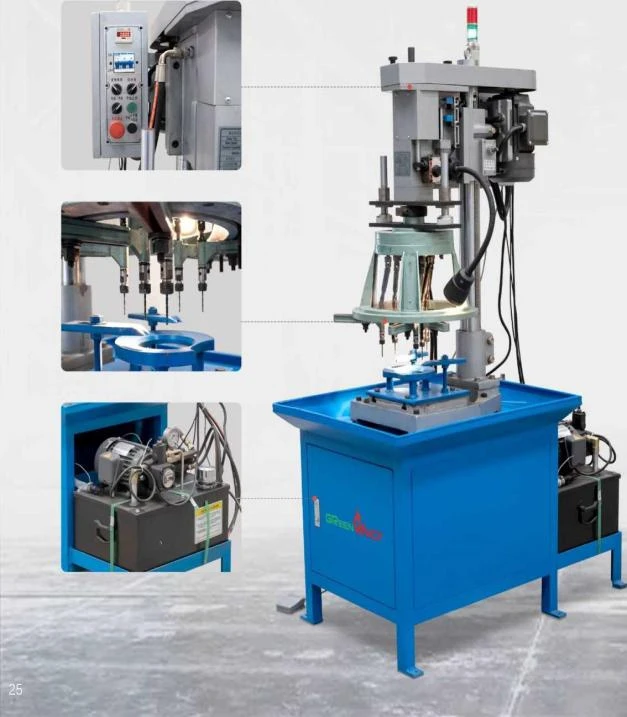

Multi-spindles Hydraulic Drilling Machine

The Multi-spindle Hydraulic Drilling Machine is an industrial-grade equipment designed for precision and durability. With its compact size and easy installation, this machine is an excellent choice for high-volume manufacturing processes that require simultaneous multi-hole drilling.

Our Multi-spindle Hydraulic Drilling Machine is robust and versatile, capable of handling multiple drilling operations at once. It features an automatic feed system for the drill bits and interchangeable chucks for various drill bit sizes. The machine allows for arbitrary adjustment of drilling positions, enhancing flexibility and efficiency in production.

Power Supply: Three-phase four-wire 380V 50Hz
Power Consumption: 1.5KW
Efficiency: 600 pieces per hour
Dimensions: 600x900x1950mm
Weight: 316KG
Hydraulic Pressure: 2.0-2.4Mpa

Save Work Time with High Drilling Precision:
Automated Operation: The machine automates the drilling process, reducing manual operations and saving time.
Simultaneous Multi-Hole Processing: Capable of drilling multiple holes at once, it increases efficiency and shortens the production cycle.
Precise Adjustment: The drilling position can be adjusted at will to ensure processing accuracy, reducing the time needed for subsequent corrections.

High Output, Improve Production Efficiency:
High Capacity: Capable of processing 600 pieces per hour, it significantly increases the production volume within a unit of time.
Consistent Quality: Ensures uniform drilling quality for each product, reducing defective items and improving production efficiency.
Easy Maintenance: The machine is robustly designed and durable, reducing maintenance time and costs, ensuring continuous production.

1. When repairing or maintaining the Multi-spindles Hydraulic Drilling Machine, you must first stop the machine tool and cut off the power supply.

2. Frequently clean the dust on the motor and fuel tank to ensure normal heat dissipation.

3. When not in use, clean and oil the workbench with plastic film (bag) to keep the column clean and rust-free.

4. Each Multi-spindles Hydraulic Drilling Machine tool must be equipped with a corresponding individually controlled leakage circuit breaker to ensure the normal use of the machine tool and personal safety. The three-phase incoming line of the machine tool must be grounded.

5. If the power cord is damaged, it should be replaced in time.

6. When pulling out the plug, do not pull the wire directly, but pull out the plug directly to avoid damage to the contact parts.

7. Regularly add oil to the guide rod and other parts that need to be lubricated.

8. The hydraulic pressure should be kept clean. In the first year, the oil should be replaced every six months, and the oil should be replaced once a year thereafter.

9. Only qualified professionals can perform repair or maintenance of the electronic control system.

Q: 1. Can one device do other products?

A: Yes, you need to adjust the pressure. If the pressure is too high, the oil pipe will burst. Generally, the pressure is 30kg.

Q: 2. What is the capacity per hour? One day's capacity

A: 600pcs/h

Q: 3. Can it be used continuously for 24 hours?

A: Yes

We also provide tapping machine
