Multi-stations Automatic Die Casting Machine
Products Description

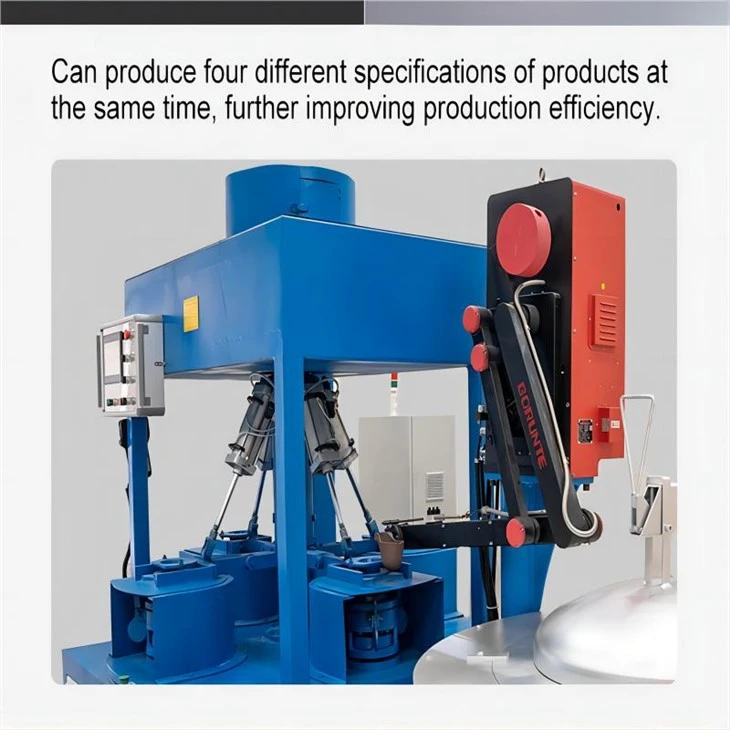

Multi-station automatic die casting machine is a state-of-the-art machine used to produce rice cooker heating plates. The multi-station automatic die casting machine has multiple stations, which means it can produce multiple different models of rice cooker heating plates at the same time. This not only increases productivity but also eliminates the need for multiple machines, making it a cost-effective option for businesses.
Product Operation
1. Prepare the mold by heating it to the desired temperature,then place the heating tube into heating plate mode and start operation.
2. Pour the melted aluminum into the heating plate mold to the desired level by the automatic arm.
3. Engage the multi-station automatic die casting machine to begin spinning the mold at a high speed.
4. Monitor the casting process, ensuring that the level of molten metal is maintained and that the mold is spinning at the correct speed.
5. Once the casting process is complete, turn off the machine and allow the mold and casting to cool to the proper temperature.
6. Remove the casting from the mold and finish as necessary.
Products Details
1. The heating plate mold can be customized according client's required.
2. Pouring filter can be used carbon steel or stainless steel.
3. intelligent operation with automatic arm pouring.
Product Parameter
Power Supply: The Multi-stations Automatic Die Casting Machine operates on a 3-phase 4-wire system with a voltage of 380W at a frequency of 50Hz.
Power Consumption
Mold Rotating Power: Each mold rotates with a power of 3KW in sequence.
Soup Machine: Operates with a power of 1.5KW.
Turntable: Requires 2.2KW for operation.
Atmospheric Pressure: The Multi-stations Automatic Die Casting Machine functions optimally within an atmospheric pressure range of 1.5 to 3Mpa.
Efficiency: The production efficiency is impressive, with a capacity of 2,890 to 3,000 pieces per 8-hour shift.
Size:The overall dimensions of The Multi-stations Automatic Die Casting Machine, including the soup dispenser, are 3,050mm x 1,700mm x 2,450mm.
Machine Weight: The Multi-stations Automatic Die Casting Machine has a substantial weight of 2,950kg, reflecting its robust build and high-quality components.
Control System: The Multi-stations Automatic Die Casting Machine is equipped with a PLC (Programmable Logic Controller) and features a screen touch control for intuitive operation.
Capacity: The Multi-stations Automatic Die Casting Machine has a high production capacity, capable of processing 180 to 220 molds per hour, depending on the length of the pipe and cutting time.
Rotating Speed: The mold rotation speed is set at 1,600 revolutions per minute (r/min).
Brake System: The Multi-stations Automatic Die Casting Machine is fitted with a resistance brake for smooth and controlled operation.
Maximum Diameter: The Multi-stations Automatic Die Casting Machine can handle molds with a maximum diameter of within 200mm.
Max Diameter Above: The molds can accommodate a diameter of above 99mm.
Operation Method: The Multi-stations Automatic Die Casting Machine operates automatically, ensuring consistent performance and reducing the need for manual intervention.
Possible issues and Solutions
| Item | Failure analysis | Solution |
| 1MANUAL mode. | 1. The turntable is not in place of Multi-stations Automatic Die Casting Machine | 1. Manual reset,the turntable automatically finds the origin. Then manually move the turntable station again, and check whether it is aligned with the ladling position. Otherwise, the station light moves left and right, and repeat the previous action again until the ladling |
| 2. No response when pressing manual thimble return under AUTO | 2.position is aligned with the ladling position | |
| 3. The turntable is in place, but the station signal light is not on of Multi-stations Automatic Die Casting Machine |
3.The distance between the signal light and the sensor block is too far,so adjust the distance of signal light of the station to about 4mm | |
| 4.The signal light of the station is damaged | 4.Replace the station signal light of Multi-stations Automatic Die Casting Machine |
There are other types of die casting machines: type-A die casting machine and type-B die casting machine
