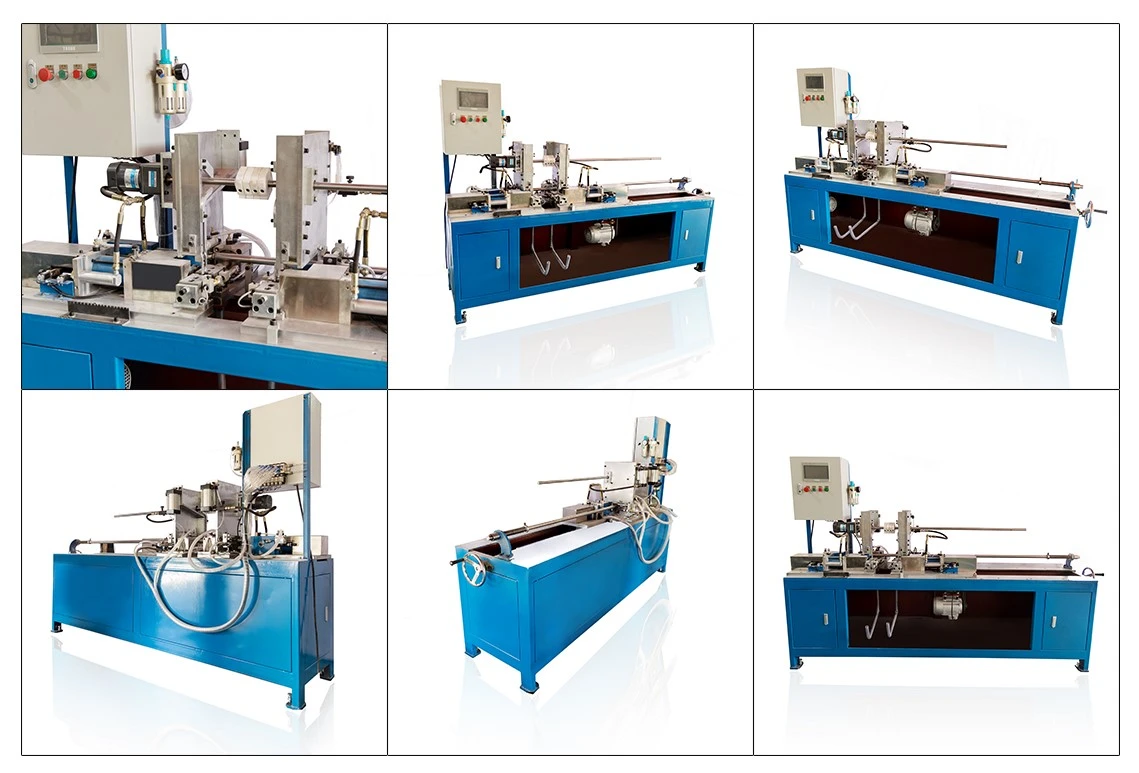

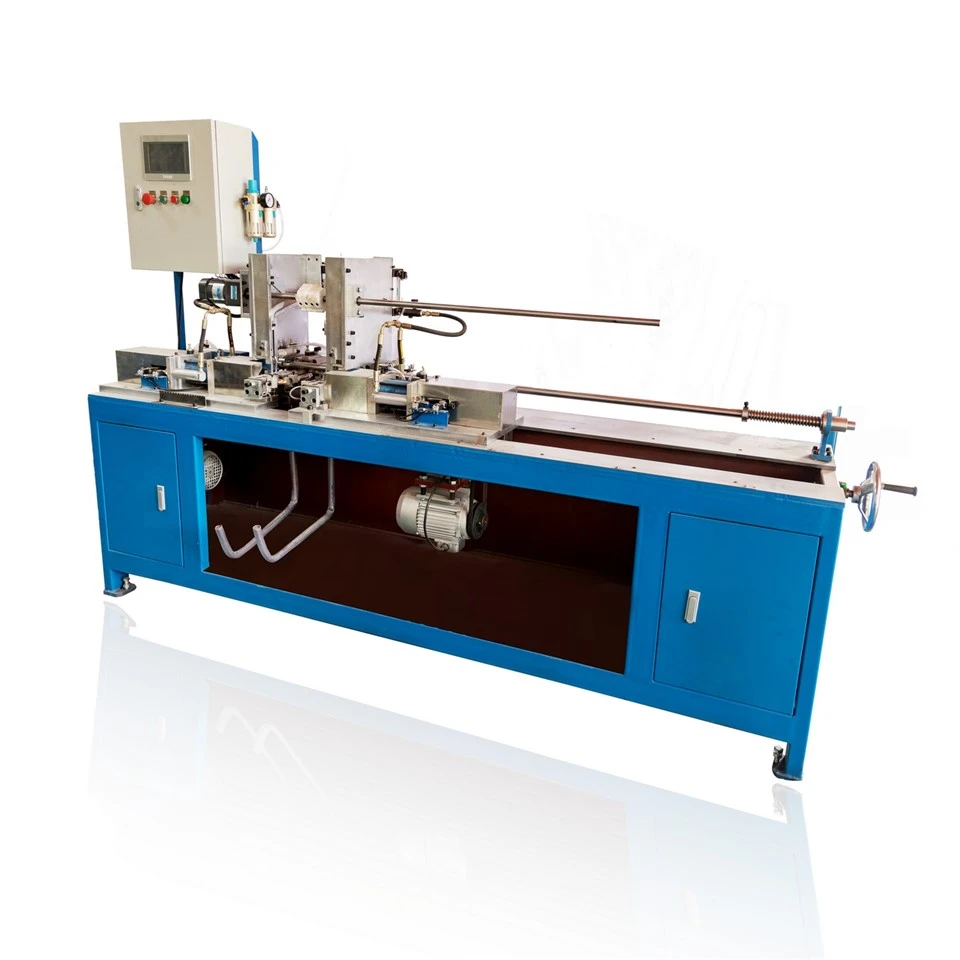

Tubular Heater Automatic Peeling Machine
The tubular heater automatic peeling machine is used to process heating tubes of varying lengths into a uniform length. It can process both ultra-short and ultra-long tubes.

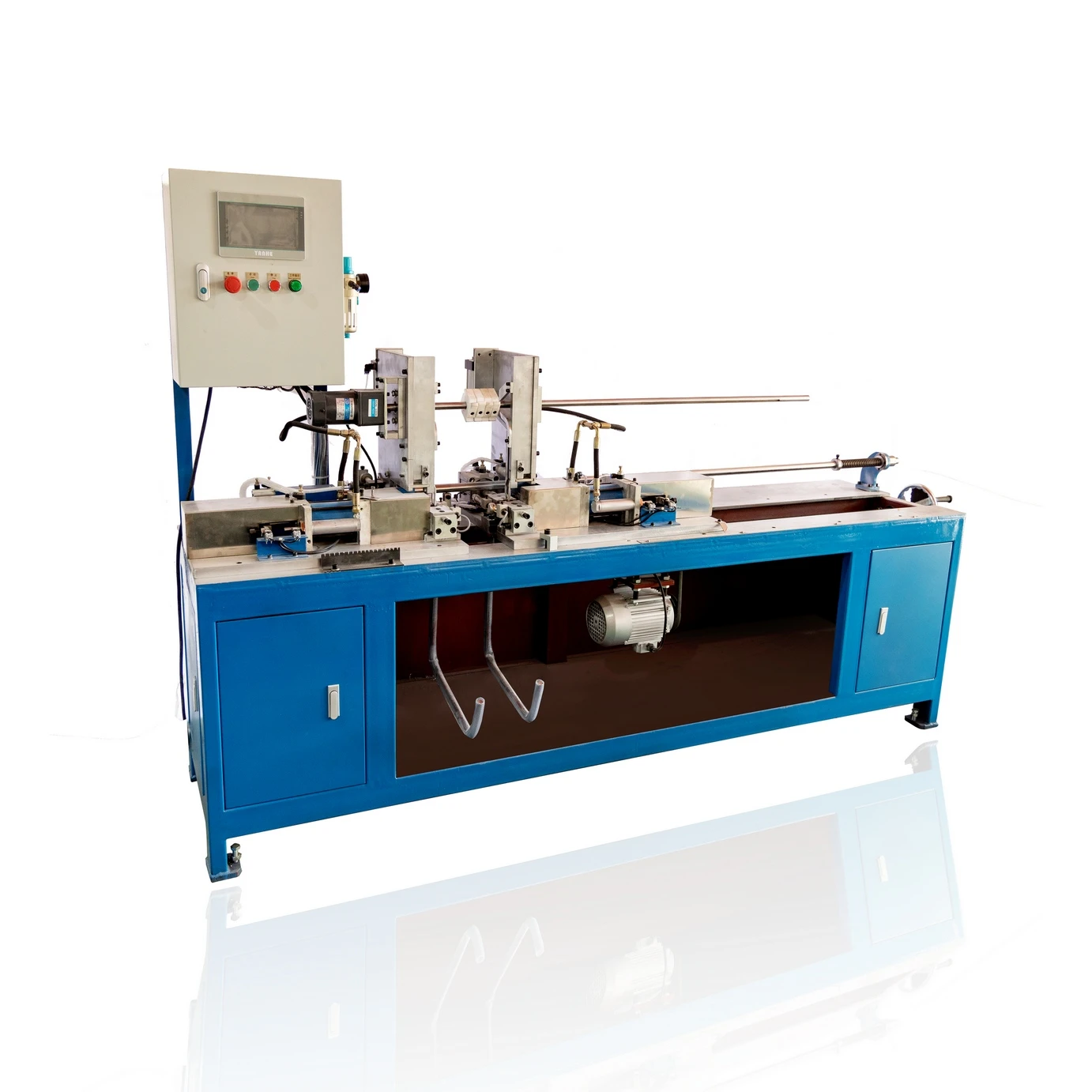

The tubular heater automatic peeling machine uses a feeding rack to push the tubes to a preset processing position. This is a double-head peeling machine, which will automatically cut both ends of the heating tubular to the same length synchronously. This completes the processing of both ends in a single operation, resulting in tubes with precise length and flat end faces. This is an indispensable production step in the manufacturing of electric heating tubes.
Specification:
|
power supply |
Three-phase 380V; 50Hz; 1.6KW |
|
Air source |
The pressure range is 0.5 MPa to 0.8 MPa. If the air source contains a significant amount of moisture, a water filter should be added to the air supply system. |
|
Processing length of electric heating tubes |
Approximately 130–1000 mm (can be extended and customized) |
|
Processing diameter of the electric heating tube |
Ø6.0- Ø 10.0mm |
|
Production efficiency |
500–1300 pieces per hour, 1-meter machine |
|
Machine Size |
2580×800×1630mm (1-meter machine) |
Advantage:
Dual-head synchronous operation, high efficiency: Traditional single-head peeling machines require operators to manually place pipes into the fixture one by one to complete cutting at both ends, resulting in low efficiency. The dual-head model, however, completes cutting at both ends simultaneously with a single clamping operation, doubling production efficiency and making it ideal for mass production.
Mature technology, low failure rate: Utilizing PLC control and a mature mechanical structure design, the electrical control system is stable. This translates to a low failure rate, simple maintenance, and easy operation.
Stable process: This tubular heater automatic peeling machine ensures consistent cutting lengths at both ends, laying a solid quality foundation for subsequent processes such as sealing, degumming, and lead wire cutting.
Processing dimensions can be adjusted at any time: The outstanding advantage of this model lies in its wide adaptability. Through flexible fixtures and stroke adjustments, it can easily handle processing needs ranging from ultra-short pipes (tens of millimeters) to ultra-long pipes (over one meter).
Basic operating procedure:
Place the heating tubular into the hopper → Press the automatic start button → The heating element is fed to the centering position → Centering → Clamping → Centering reset → Peeling blade advances → Peeling blade retracts → Clamp releases → Material support cylinder releases → The heating tubular drops into the finished product area.
Equipment Maintenance, Servicing, and Precautions
① Check if the power indicator light is working properly each time the equipment is turned on.
② Check if the "emergency stop" button is working properly each time the equipment is turned on;
③ After turning on the equipment, check for any unusual noises.
④ Clean the equipment before turning it on and after completing production.
⑤ Regularly check for loose screws and wear on easily damaged parts.
⑥ Note: Ensure the power and air supply are stable; otherwise, it will affect the normal operation of the equipment.
⑦ Do not arbitrarily adjust parameters in the control box while the equipment is running to avoid damaging the equipment.
