MgO Powder Filling Machine for Tubular Heaters
Products Description
The Double Columns Mgo Powder Filling Machine is specifically designed for the filling process of magnesium oxide powder in the electric heating tube industry. With advanced technology and precise craftsmanship, it ensures the accuracy of filling and improves production efficiency.
Machine Components &Structure
The Double Columns MgO Powder Filling Machine is mainly composed of the following parts: frame, powder box, conduit, mandrel, inching mechanism, lower fixing mechanism, oscillating mechanism, loading rack, powder receiving tray, and electrical control system.
1) Frame part
It is mainly welded from square steel tubes and steel plates, and is equipped with tool steel running rails, ensuring firmness, reliability, and durability.
2) Powder box part
It mainly consists of inner and outer steel molds, which function for powder control, tube positioning, and sealing.
3) Conduit part
It is mainly composed of stainless steel and a nozzle, driven by a variable frequency motor, and serves a protective role.

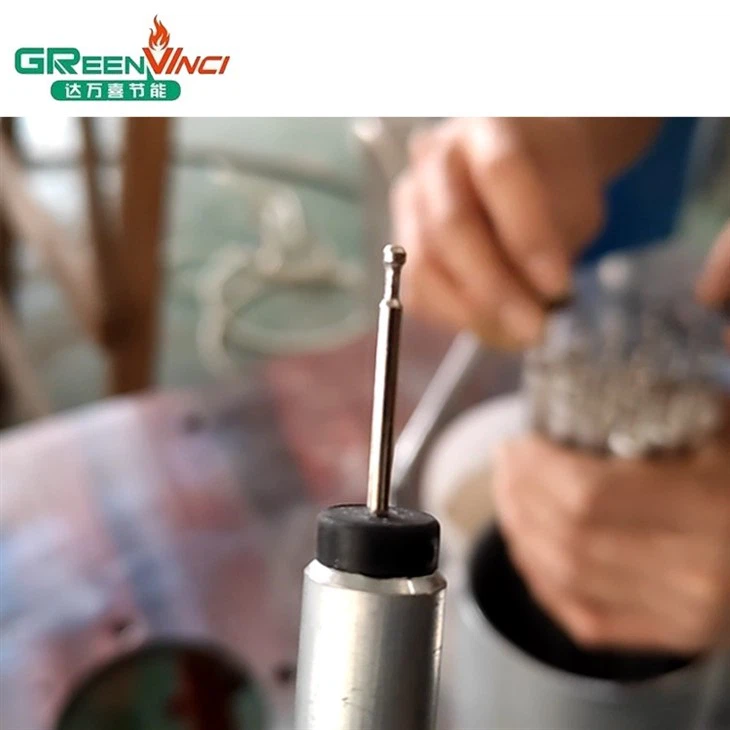

4) Mandrel part
It is mainly composed of spring steel wire and a hook, driven by an air cylinder, and is used to straighten the heating wire evenly.
5) Inching part
It is mainly composed of an adjusting handwheel and a top wheel, used to control the exposed length of the lead-out rod and the disengagement of the lead-out rod from the hook after filling.
6) Lower fixing part
It is mainly composed of a lower bearing seat and clamping mechanism, used for positioning the lower part of the tube and clamping it during tube loading.
7) Oscillating part
It is used to adjust and control the powder filling density. Its structure is divided into the following two types:
Electromagnetic oscillation: mainly composed of an electromagnetic coil and a vibration plate.
Motor oscillation: mainly composed of a speed-regulating motor and a vibration plate.
8) Loading rack
Used to hold the tubes to be filled, allowing convenient one-time tube arrangement.
9) Powder receiving tray
Used to catch residual powder falling during the filling process, and at the same time, convenient for placing the heating wires to be filled.
10) Electrical control part
It consists of a distribution box and an operation panel box. The distribution box houses the control electrical components; the operation panel box houses the touch screen for convenient operation.
Specification
|
Power Supply |
Simplex (220V/50Hz ,2.0kw) |
|
Air Source |
0.5-0.7 MPa |
|
Pipe Diameter |
Φ6-Φ20 (customize) |
|
Station |
30-36pcs (customize) |
|
Power Filling Speed |
300-350 mm/min (adjustable frequency) |
|
Filling density |
≥2.25/cm3 |
|
Mandrel Drive Mode |
Frequency Motor |
|
Catheter Driving Mode |
Frequency Motor |
|
Centering Type |
Three catheters protection |
|
Control |
Human interface |
|
Output |
About 7000/8h |
Main Advantage
High Precision Filling: The Double Columns MgO Powder Filling Machine utilizes a weight sensor to ensure the exact amount of powder filled in each heating tube; high-precision magnesium oxide filling machine ±0.5g. It is a very important step in the heating tubular making process.
Automatic Feeding System: Equipped with an automatic feeding system for a more convenient and efficient filling process; it is an upgraded automatic powder filler for heating element production
Easy Maintenance: Designed with a simple structure for easy maintenance.
Durable and Reliable: Constructed with high-quality materials for long-lasting performance.
Quality Standards
Accuracy: Filling volume accuracy is controlled within ±0.5g to ensure the quality of the heating tubes.
Durability: A robust and sturdy iron frame, along with motors and electronic components from well-known domestic brands, ensures the machine's durability and reliability.
Efficiency: Capable of filling 60-80 heating tubes per minute with a length of 1 meter or less, significantly improving production efficiency.
Safety: Equipped with an emergency stop safety device to prevent accidents.
Maintenance: Simple structural design facilitates maintenance, reducing downtime and maintenance costs.
How to maintain the Mgo Powder Filling Machine
(1) When starting each shift, check whether the power indicator light is normal;
(2) Check whether the stop button is valid when starting each shift;
(3) Grease should be added to the sliding parts every week; (no oiling is allowed on the
guide slide, mandrel slide, and follower slide)
(4) Whether there is any abnormal sound after booting;
(5) After getting off work, the equipment should be turned off to fully dissipate heat;
(6) The equipment should be cleaned before starting and after getting off work.
(7) Check whether the fastening screws of the electrical and mechanical parts are loose
every month.
About Davinci Machine
Davinci Machine has been manufacturing heating element production equipment for over 15 years. Our MgO Powder Filling Machine for heaters undergoes rigorous quality control and can be customized according to customer requirements. We can also send engineers to the customer's factory to assist with equipment installation and commissioning, ensuring that the equipment operates smoothly in the factory.
If you are interested in this mgo power filling machine price, please feel free to contact us!
There are other types of powder filling machines: single-column powder filling machines, four-column powder filling machines, widened column powder filling machines.
