Foshan Davinci Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of automated tube cutting machine in China, also supports customized service. Please feel free to wholesale cheap automated tube cutting machine in stock here from our factory. For price consultation, contact us.
Automated Tube Cutting Machine
Products Introducation

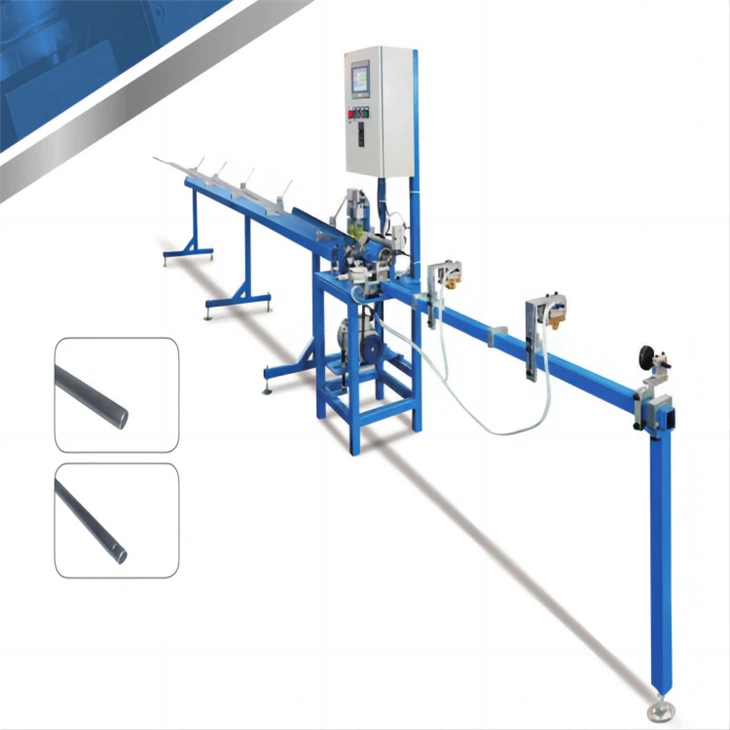

Automatic Tube Cutting Machine is used for cutting and rolling grooving of thin-walled pipes with pipe diameters below 19mm and thickness of 1.0mm. lt adopts touch screen operation, PLC control, convenient adjustment and simple replacement of specifications.The cutting length and dimension control are stable.
Products Parameter
|
Power Supply |
Three phase 380V\50Hz\1 .6kW |
|
Gas Source |
0.5~0.8MPa |
|
Feeding Length |
130~ 3000mm |
|
Effectiveness |
3000~7000 pcs/8 hours |
|
Diameter |
2500x650x1 500mm(1 meter machine) |
|
Weight |
350kg |
Main Feature
1.It adopts touch screen operation,PLC control
2.Convenient adjustment and simple replacement of specifications
3.The cutting length and dimension control are stable.
4.High precision pneumatic rotary chuck, more stable chuck.
5.Man-machine interface, easy to operate.
6.All actions are controlled by time to reduce failure rate.
7.Pipe can be directly filled without burring after cutting.
Scope of application
Suitable for the heating tube of Electric Kettle, Electric Rice Cooker,Iron, Coffee Pot,Air Fryer,etc.
Possible problems and solutions
| Problem | Solution |
|
1. Blade Dullness: Over time, the cutting blade may become dull due to constant use. This can affect the accuracy of cuts and can also cause damage to the heating tube itself.
|
Regular sharpening of the cutting blade is recommended to maintain the machine's optimal performance. The blade can either be replaced or sharpened using a specialized sharpening device depending on the severity of its condition. |
| 2. Power Supply Issues: Power fluctuations or improper wiring can cause the machine to malfunction or trip the breaker. | Ensure proper wiring and connect the machine to a stable power supply for optimal performance. A qualified electrician can also be engaged to provide a stable power supply. |
| 3. Overheating: Continuous use of the machine can cause the motor and other components to overheat leading to a machine malfunction. | Stop using the machine immediately once it starts overheating. Allow the Automated Tube Cutting Machine to cool down before resuming production. Regular cleaning and lubricating can also help minimize overheating of parts. |
