Tubular heater Making Machine - Automatic Motor Coil Winding Machine
Products Description

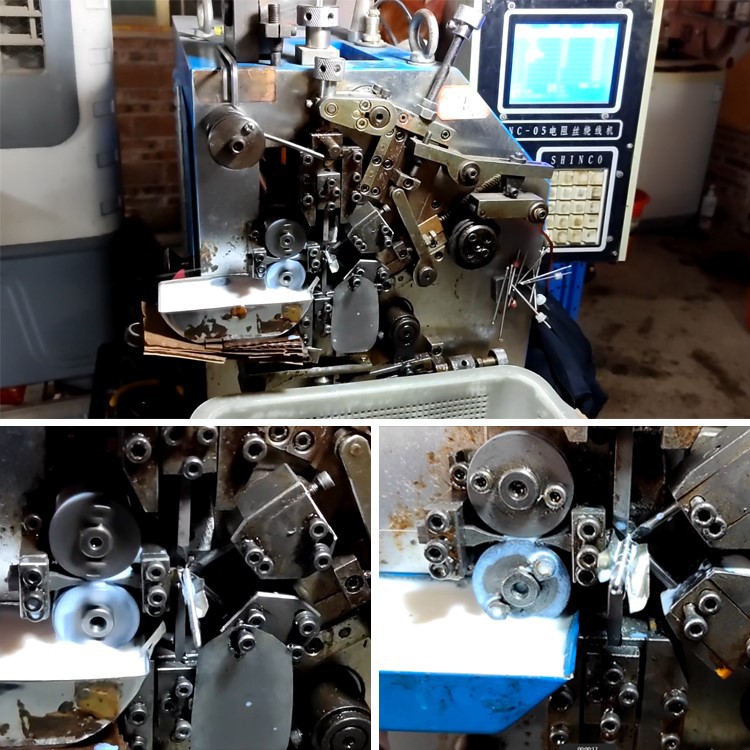

Precision Automatic Motor Coil Winding Machine for heating elements. Controlled by PLC and touch screen, it offers automatic, precise resistance control. Versatile with different wire diameters, ensuring high production efficiency. Safety features include automatic stop for insufficient wire or breakage.
Main Feature
1. User-Friendly Operation: Enjoy simplicity in operation, making wire coiling a breeze.
2. Burrs-Free Cutting: Achieve a smooth finish with cut-offs that are free from burrs, eliminating the need for additional manual trimming.
3. Preset Resistance: Set and achieve the desired resistance effortlessly, ensuring precision in the winding of heating wires.
4. Parameter Storage: Store up to max 40 sets parameters, providing easy access and quick adjustment whenever needed.
5. Automatic Stop Safeguard: The machine comes equipped with an automatic stop feature triggered when the wire is insufficient or disconnected, ensuring operational safety.
6. Intuitive Man-Machine Control: Experience seamless control through an intuitive interface, enhancing user convenience during operation.
7. Preset Output Control: Set desired output levels, and the machine will automatically stop once the specified output is reached, streamlining the production process.
Product Maintenance and Cleaning
1. Regular maintenance is essential to ensure the long-lasting performance of the Electric Rice Cooker Heating Tube Automatic Motor Coil Winding Machine. Clean and lubricate the machine regularly, and check for any signs of wear and tear on the parts.
2. Regularly check the tension of the wire to ensure the quality and consistency of the finished products.
3. Clean the machine regularly to prevent debris buildup that could affect its performance.

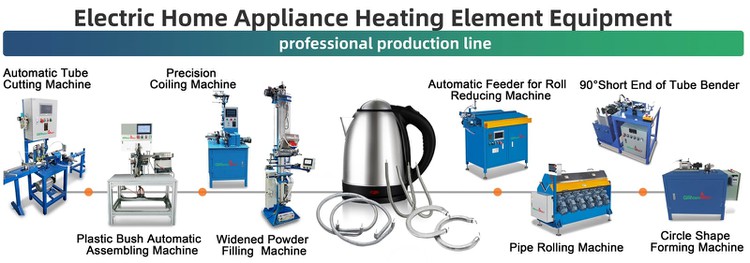

More Tubular heater Making Machine For Option
Do you want to open factory in your Country?
Do you need to custom kettle heating tube production line?
Davinci can help you!
Hot Tags: automatic motor coil winding machine, China automatic motor coil winding machine manufacturers, suppliers, automatic Heating Tube winding machine, automatic fan winding machine, , automatic motor winding machine, Rice Cooker Tubular Heater spring coiling machine
Technical Parameter
|
Power Supply |
Simplex 220V\50Hz\0.6kW |
|
Air Supply |
0.5~0.7MPa |
|
Cutting Type |
Dual stroke cylinder |
|
Winding Inner Diameter |
Φ1.0mm to Φ6.0mm(customize by mandril) |
|
Resistance Wire Diameter |
Φ0.1mm to Φ1mm |
|
Main Axis Motor |
370W(Adjustable Frequency) |
|
Wheel Motor |
90W(Speed adjustable) |
|
Dimension |
750x600x1650mm |
|
Weight |
175kg |
|
The winding resistance accuracy is 2% (suitable for the spindle speed of 800-1000 rpm, and the resistance of the heating wire is required to be accurate; otherwise, the accuracy will be affected. |
|
