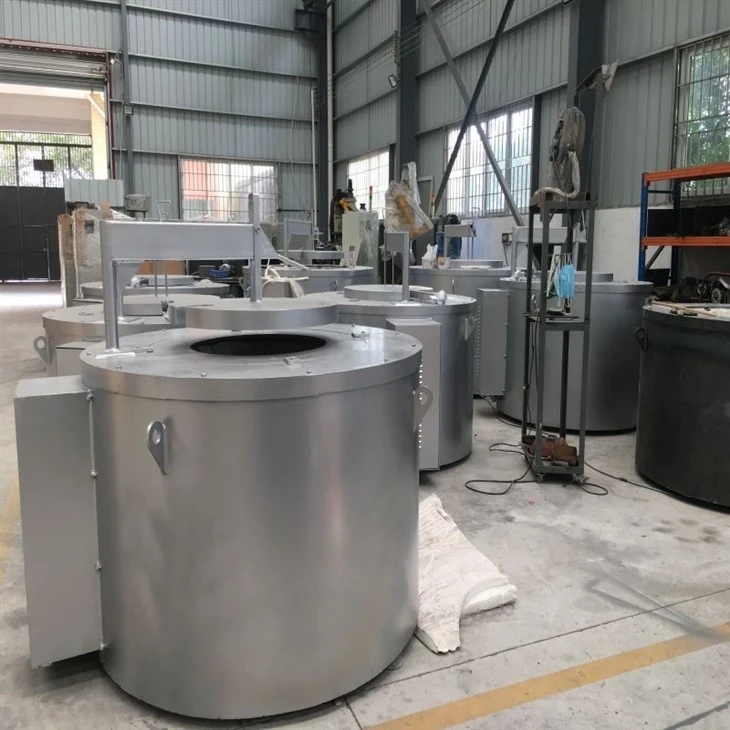

Induction Melting Furnace
Products Description
The Induction Melting Furnace is a state-of-the-art crucible furnace designed for combustion, melting, and heat preservation. It stands out as the most well-designed and automated melting furnace on the market, equipped with multiple patents, ensuring efficiency and reliability in your melting processes.
Product Parameter
|
Dimension(L*W*H) |
1400*980mm |
|
Power (kW) |
50 |
|
Voltage |
380v |
|
Weight(T) |
1.5T |
|
Key Selling Points |
Energy saving |
|
Packaging Details |
Wooden case /safety packing |
|
Certification: |
CEISGS/ISO |
|
warranty |
1 Year |
Induction Melting Furnace equipment parameters:
|
Item no. |
Melting capacity |
Liquid alu capacity |
Total Power |
Match Model |
|
OP-250 |
60-80kg/h |
250kg |
50 kw |
160-280 |
|
OP-300 |
80-100kg/h |
300kg |
60 kw |
250-350 |
|
OP-400 |
90-110kg/h |
400kg |
70 kw |
280-400 |
|
OP-500 |
110-140kg/h |
500kg |
90 kw |
350-500 |
|
OP-600 |
140-160kg/h |
600kg |
110 kw |
500-800 |
Products Feature
Energy Efficiency: Ultra-low melting and heat preservation costs.
Robust Construction: Solid furnace body with high-quality refractory materials, keeping exterior temperatures below 60°C.
Integrated Configuration: Includes silicon controlled rectifier with rapid detection and current limiting functions.
High-Temperature Heating Belt: Imported from Sweden for extended service life, with an aluminum leakage alarm and power-off device.
Artificial Intelligence Temperature Controller: Ensures precise and intelligent temperature management.
Customizable Crucible Material: Tailored to your specific needs.
Compact Design: Space-efficient with easy operation and minimal maintenance requirements.
Products Advantages
Our Induction Melting Furnace Advantages:
|
|
Our product |
Other |
|
Standard surface load |
According to the standard surface load (2.3 W/cm2) |
The higher the surface load, the lower the cost of the material used, and the surface load is too high and it is easy to burn out. |
|
Energy saving |
350 (manually scooping water)-380 (bailing water for soup machine) kw/ton of aluminum |
500-550kw/ton aluminum |
|
Insulation effect |
The interior is all ceramic fiber modules - insulation cotton, without bricks
|
There are bricks and the insulation effect is poor
|
|
Safety |
No steel nails, use ceramic nails (special-density), no bricks, use ceramic fiber modules, no short circuit, maximum temperature 950 degrees |
There are steel nails, when encountering high temperature, the brick is not easy to dissipate heat, the iron melts and flows molten iron, resulting in a short circuit, the maximum temperature is 800 degrees |
|
Control cabinet |
Taiwan brand control host, temperature control meter warranty for 6 years |
Temperature table |
|
crucible |
Gold like graphite crucible, fast heat conduction, can be used for 6-8 months |
|
|
After-sale maintenance |
There is basically no after-sales service, and it can be used for 5-10 years.
If any resistance band burns out, just replace it with the same resistance band and solder it (the temperature rises slowly or does not rise after disconnection, stop the furnace for inspection, and replace it wherever the segment is) |
|
Elevate your melting process with our Induction Melting Furnace. For more information or to request a quote, please Contact Us. WhatsApp: +8618029293151, Email: sales1@vincienergy.com
