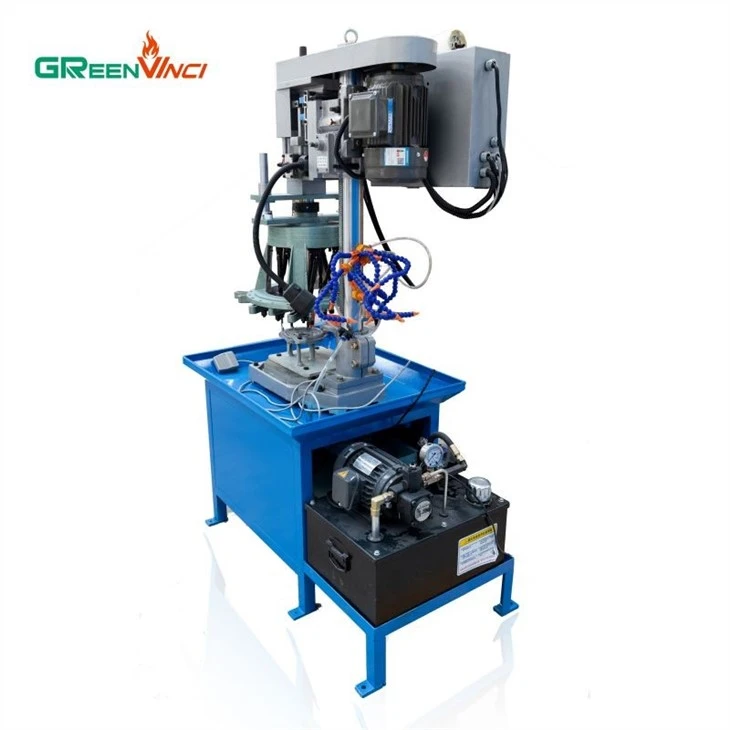

Multi-axis Hydraulic Tapping Machine
Product Overview
Streamline your manufacturing process with the Gear-Type Multi-Spindle Tapping Machine. This robust and versatile equipment is designed to enhance precision and efficiency in your production line, offering compact dimensions, easy installation, and the capability to process multiple holes simultaneously.
How It Works
The Gear-Type Multi-Spindle Tapping Machine operates on a sturdy and durable design principle. It features the ability to interchange tapping heads of different specifications for versatile hole processing. The positions of the tapped holes can be adjusted according to specific requirements, ensuring flexibility in various applications.
Technical Specifications:
|
Power supply |
380V 50Hz |
|
Power |
1.5KW |
|
Size |
600x900x1900mm |
|
Machine Weight |
216KG |
|
Capacity |
600pcs/hr |
|
Workbench area (mm) |
300*350 |
|
Spindle speed (r/min) |
1400 |
|
Spindle power (W) |
1500 |
|
Maximum tapping wire diameter (mm) |
6mm |
|
Minimum distance of shaft head (mm) |
15 |
|
Maximum tapping area (mm) |
Adjustable within Φ250 |
|
Number of axes |
9 |
|
Repeatability (mm) |
0.02 |
|
Maximum stroke (mm) |
65 |
|
Feeding method |
Gear |
|
Water tank |
included |
|
Water pump |
included |
Products Advantages
Enhanced Efficiency: Improves product efficiency and tapping precision.
Time-Saving Operation: Offers high accuracy and increased output, boosting overall production efficiency.
Production Capacity: The Gear-Type Multi-Spindle Tapping Machine is built for durability, capable of operating continuously for 24 hours. With a production capacity of 600 pieces per hour, it ensures efficient output throughout the day.
Why Choose Our Multi-axis Hydraulic Tapping Machine?
Precision and Versatility: Interchangeable tapping heads and adjustable hole positions for various applications.
Durable Construction: Built to last with continuous operation capabilities.
Efficient Output: High production capacity for consistent efficiency.
